PG5 2.0 New features in SP2 (PG5 2.0.2x0)

This page contains the principal new features from PG5 2.0 SP2 and is an abstract from the document "What's new in PG5 2.0". The download page for PG5 can be found here.

Documentation

What's new in PG5 2.0

Presentation What's new in PG5 2.0

DE Archive .ppt 2.59 MB Download
EN Archive .ppt 2.52 MB Download
FR Archive .ppt 1.89 MB Download

What's new in PG5 V2.0.220?

Flyer What's new in PG5 V2.0.220?

EN Archive .pdf 1.93 MB Download

Additional Documentation (Manuals, Workshops) can be found on the Controls Suite DVD

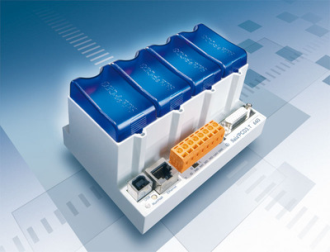

Support for Smart Ethernet RIO

PG5 2.0 has been enhanced with new modules and functionalities in order to configure and program the new Smart Ethernet RIOs. The new RIO Network Configurator application allows the definition of new RIO devices in the network and the definition of the data exchange between the manager and the RIOs. The Project Manager has been enhanced in order to display the RIO stations in the project tree and allows the definition of program files for each programmable RIO.
You will find more details about the Smart Ethernet RIO in the start guide, the project samples and the RIO Network Configurator help

New media mapping window

A new media mapping window has been integrated into the Device Configurator. This window shows the symbol definition of the mapped media of each IO card define in the device. Together with new the firmware capability, the addresses for the input and output symbols can be dynamic or absolute and it is no longer necessary to define consecutive addresses as array of symbols. It is also possible to use existing public symbols, for example in Fupla, and assign them directly to a mapped input or output.

Minimal firmware for the mapping without arrays is version 1.16.27.

Improvements of Device Configurator

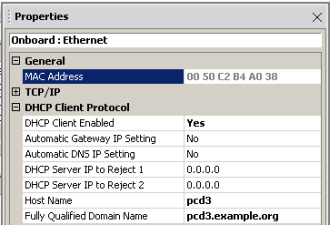

For an easier configuration, the Ethernet and DHCP parameters organization has been re-organized.
The following device and modules are now integrated into the Device Configurator:
PCD3.T665/6, PCD1.M2020, PCD2.C1000, PCD2/3.B160, PCD2.F27x0 and PCD3.F27x and the PCD3/7.R580 and PCD3/7.R581.
The Label Editor, included in the Device Configurator, has been updated in order to define and print labels for the PCD1.M2xx0 devices.

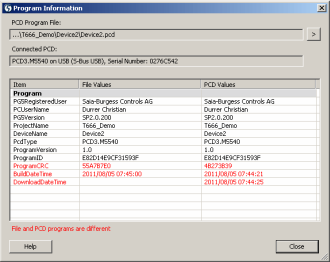

Improved program information

This new window displays information about the active device in the PG5 project and the program currently present in the connected PCD. The following information is shown:
PG5 registered user, PC user name, PG5 version, project name, device name, PCD type, program version, program ID, program CRC, build and download time.
Some of this information is also available as "pre-defined strings" which can be used in the program.

New USB device driver compatible with 64bit operating systems

Within this service pack, a new USB driver, compatible with 32 bit and 64 bit operating system, is installed.
If PG5 1.4.300 is installed in parallel to PG5 2.0, the SCOMM has to be updated in order to support the new USB driver. For this update, a patch is available on the installation DVD ‘ScommUpdate_1.4_321.exe’.
For more information, the document ‘SBC USB Info & Installation.pdf’ is available on the installation DVD.

S-WebEditor 5.15.02

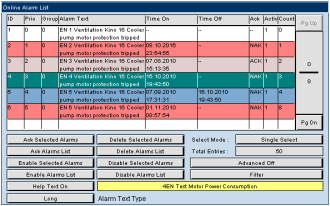

The Alarming modules have been enhanced with new functions like group, priority, alarm texts on 2 lines, new Event List, new macro configuration dialogue and other functionalities. Quick start guide and program examples can be found in the Web Editor installation folder, typically:
C:\Program Files\Saia-Burgess\PG5_20\Web Editor 5_15_02\Alarming 2 documentation’
While the new features require a new firmware (which is not yet available, see FAQ 101648) for the MB Panels, the old version "5.14.30 Alarming modules" are still available in the Macro Library and remain fully supported by the PCD Firmware and the FBox library.
The DDC Suite templates have been enhanced and are now in 4 languages available: DE, EN, FR and NL.
The new icons are provided in a separate library - ‘Icon Gallery_V2’ - and can therefore also be used for other applications.
Now the user can add his own definitions in the HTML file, for example, the display format of the web page. During the build in the Web-Editor, the definitions are kept and not anymore overwritten.

New "download" and "backup to flash" dialogs

New "Download program" and "backup to flash" dialogs support for the new flash backup/restore to file system function which also includes the media (Register, Flags, Timer, Counters) described in FAQ 101622 (for PCD2.M5 and PCD3) and FAQ 101632 (for PCD1.M2). The new dialogs provide more detailled information about the executed tasks and where the backup is stored. The new flash backup functionality is available in firmware version 1.16.27 and later.
The ‘Download Program’ dialog box and the flash memory backup commands have been updated according the new Feature.

Other improvements

In Project Manager
  • Pre and post build scripts: possibility to start scripts before and/or after a build. This can be used, for example, to automatically backup the source files after a successful build.

In Fupla Editor

  • Improved page/template import dialog, allowing to disable single pages
  • File opening speed: comparing to the previous release, big Fupla files can be opened about 30% faster.
  • Fupla Unicode: it is now possible to save the Fupla files in different code page in order to retrieve the special characters.

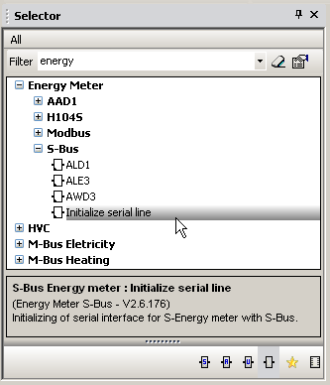

  • New FBox organisation, based on functionality. The old organisation, based on libraries is still available, just use the command from the context menu.
  • Possibility to log the FBox adjust parameters adaption in online mode and possibility to update the Fupla project with the logged values.
  • Improvements in cross reference handling, page import, online probes definition in context menu and in the property grid navigation.

In Symbol Editor

  • Possibility to edit symbol in filtered view
  • Possibility to use the stretch function over symbol groups
